¶ About

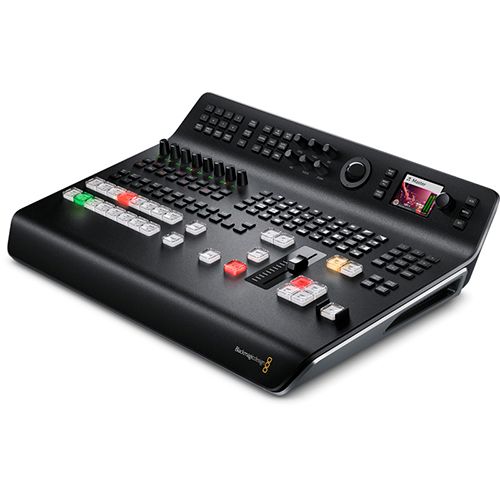

The ATEM Television Studio Pro 4K is the main switcher used in the YSTV studio. It is normally situated on the desk in the control room next to the SDI patches built in to the desk, and Edit 2.
¶ Studio Inputs
Below is a table containing the default patching of video feeds into the numbered inputs on the back of the unit when being used for a standard studio show. Inputs 5, 6 and 7 are generated by vMix on Edit 2.
| Input Number | Description |
|---|---|
| 1 | Studio Cam 1 |
| 2 | Studio Cam 2 |
| 3 | Studio Cam 3 |
| 4 | Jib Camera |
| 5 | VT Key |
| 6 | VT Fill |
| 7 | TV Feed |
| 8 | Spare |
